Air Fryer KQZG018 User Manual English Version

Air Fryer KQZG018 User Manual English Version

Video - Air Fryer

Ⅰ. Product parameters

Product Name

Model NO.

Rated Voltage

Rated Frequency

Rated Power

Appliance Classes

Air Fryer

CKZ-2328BDS2

220-240V~

50-60Hz

1500W

Class I

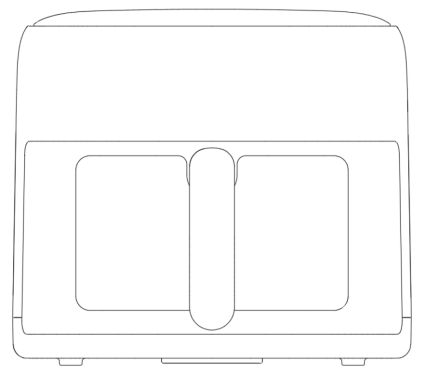

Ⅱ. Drawings

Ⅲ.. Operation Instructions

  1. Plug in the power to enter the standby mode and  the power button lights up with the digital display screen displaying OFF;
  2. Press the power button to enter the setting mode of time, temperature and functions. The default time is 18 minutes and the temperature is 200℃.
  3. Time and temperature can be selected by pressing the alternate key, and set by pressing add or subtract. You can also select the top ten menu, default temperature and time. After setting, press the Start button, and the product will start to run and enter the heating state.；
  4. After product heating, the fan will delay cooling for 30 seconds。
  5. Turning over the food when half time is to make the food uniform heating,If do not preheat the time of cooking should increase 3 minutes accordingly.
  6. Pressing the light button will help you check the cooking progress. You can click this button once to turn on or off the light.

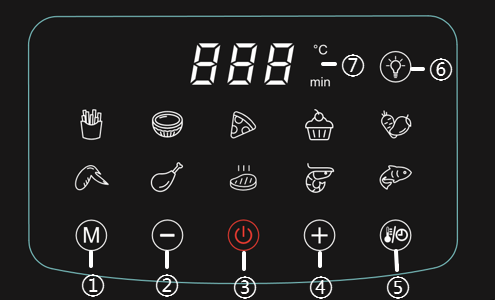

Button Instructions

① Preset Menu: Press the preset menu button to select a menu; the selected menu indicator will flash.

②④ Increase/Decrease: Adjust cooking temperature/time.

③ Start/Pause: Press Start/Pause; press again to cancel cooking.

⑤ Temperature/Time Adjustment: Press to switch between temperature and time settings. Adjust temperature when the “℃” icon is illuminated; adjust time when the “min” icon is illuminated. Maximum time: 60 min. Maximum temperature: 200℃.

⑥ Oven Light: Press to turn the oven light on/off.

⑦ Time/Temperature Indicator: Displays temperature when the “℃” icon is illuminated; displays time when the “min” icon is illuminated.

Ⅳ. Cleaning, maintenance and storage

  1. Remove the plug, to be completely cooling products.
  2. And flexible, with warm water and detergent cleaning pot on top, rinse with water and dry bath, do not use steel wire ball/steel wire brush or kitchen and plastic shell base, strong detergent cleaning pot on top and the inner pot can be put in the dishwasher to clean.
  3. Must not will shell immersed in water or any other liquid, not clean in the dishwasher, the shell can only use wet cloth to wipe clean.
  4. Every time after use, wipe with wet cloth inside the air fryer, there may be a small amount of food on the internal surface oil spills.

Ⅴ. Precautions

  • Warning
  1. Before connecting the power, please check the voltage is conformity with the local voltage.
  2. If plug power cord, appliance itself are damaged, please do not use this appliance.
  3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  4. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  5. Children being supervised not to play with the appliance.
  6. Don't let the power cord come into contact with the surface of the high temperature.
  7. The appliance must be earthed socket inserts, and make sure it's correct insertion.
  8. Don’t put appliance rely on a wall or other products, on both sides, the back, the rack of the product should set aside at least 10cm above the free space, don't be placed above the items above the appliance.
  9. Don’t use the appliance on any other purpose, except the descried on the manual.
  10. The appliance cooking by hot air ,when working ,there will be releasing the hot steam from outlet ,your hands and face should keep a safe distance ,also when you take out the inner pot from appliance .
  11. When using the appliance ,the surface may become hot .
  12. Do not use the appliance at the bottom of the curtains and other flammable materials (or a built-in wardrobe or cupboard below) , otherwise may cause fire.
  13. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
  14. Read this instructions booklet carefully before installing and using the appliance. It is the only way to ensure the best results and maximum user safety.
  • Dangerous:
  1. Pull out the basket by handle directly ,do not touch the button .put the fixed inner pot on the table ,then press the button to make the basket separation ,
  2. Food must be fried in the basket, to avoid contact with heating elements.
  3. Do not seal the inlet and outlet when the appliance is working.
  4. Do not pour the oil into inner pot, it may cause a fire.
  • Caution:

  1. This appliance is intended for use in domestic and similar applications, such as:

    - Staff kitchens in shops, offices, and other work environments;

    - Rural homes;

    - By guests in hotels, motels, and other residential environments;

    - Inn-type environments.Products can only be sent to the factory or maintenance center repair, do not repair by yourself.

  2. Products can only be sent to the factory or maintenance center repair, do not repair by yourself.
  3. This appliance design using the environment temperature is between 5 ℃ and 40 ℃.
  4. Must pull out the plug once finish using.
  5. Before handling or cleaning appliance, must make it cooling about 30 minutes.
  6. Secure cooking ingredients in this product is golden brown, not black or brown. The charred section should be discarded. Do not Fried fresh potato under the temperature higher than 180 ℃ （to minimize the formation of acrylamide）.
  7. When for the first time to use the air fryer, there will be a slight odor or smoke, because production caused by the remnants of evaporation, is a normal phenomenon.
  8. When you are cooking oil content high food, a large number of lampblack to infiltrate the products, oil can produce white lampblack, at the same time, the surface of the product may be hotter than normal, this will not affect the product the end effect of Fried food.

  9. CAUTION! HOT SURFACE!

    During use and operation, this appliance becomes hot. Be careful and avoid contact with hot parts (trays, grill, and fryer).Handle the appliance by holding it by the handles or using appropriate utensils.This symbol indicates that the surface may become hot during operation of the product.
