Simplus BLENDER PBJH001 USER MANUAL

Simplus BLENDER PBJH001 USER MANUAL



I. Specification Parameters



II. Product Overview



① Lid

② Sealing Ring

③ Stainless Steel Inner Pot

④ Main Unit

⑤ Control Panel

⑥ Base

⑦ Grinding Blades

⑧ Handle

⑨ Measuring Cup



III. Instruction for Use

• Control Panel Overview

1. "START/CANCEL" Button

(1) Power On: Connect the power, touch the "START/CANCEL" button, the product enters standby mode, and the display shows "--".

(2) Start: After selecting a function, touch the "START/CANCEL" button, and the product enters working mode.

(3) Cancel: During operation, touch the "START/CANCEL" button, the product stops working and returns to standby mode.

2. "MENU" Button

Function Selection: In standby mode, touch the "MENU" button and the indicator light of the "Juice" function flashes. Touch the "MENU" button repeatedly to select other functions, and the indicator light of corresponding functions flashes. After selecting the function, touch the "START/CANCEL" button to start the product.

The functions cycle as follows: Juice, Smoothie, Pumpkin Soup, Keep Warm, Quick Soymilk, Thick Soymilk, Boil Water, Self-Cleaning.

3. "TIMER" Button

presetting: After selecting a function, touch the "TIMER" button to enter the presetting mode. Press the "TIMER" button repeatedly to adjust the time. After setting the time, touch the "START/CANCEL" button to start the product.

Notes:

(1) Functions with preset options: Pumpkin Soup, Quick Soymilk, Thick Soymilk.

(2) Presetting time range: 2-24 hours.

(3) The preset time includes a function's working duration. After the presetting countdown ends, food is ready.

4. Functions

(1) Cold Drink Functions (Juice, Smoothie)

Add ingredients, select a function and touch the "START/CANCEL" button, the product will start working. When the function is completed, a sound prompt will be heard, the display will show 'Ed' and the product will enter standby mode.

(2) Hot Drink Functions (Pumpkin Soup, Quick Soymilk, Thick Soymilk, Boil Water)

Add ingredients, select a function and touch the "START/CANCEL" button, the product will start working. After the function is completed, the product automatically enters the keep warm mode, the screen will show "bb" and the maximum keep warm time is 4 hours. After the keep warm mode ends, a sound prompt will be heard, the display will show 'Ed' and the product will enter standby mode.

Notes:

① All hot drink functions automatically enter the keep warm mode after completion. The preservation temperature is about 55-60℃ and the duration of keep warm mode is 4 hours.

② Some ingredients will deteriorate if soaked for a long time. The following ingredients are not recommended for the presetting function: milk, fish, shrimp, chicken, ribs, pork, beef, etc.

③ When making hot drinks, add sugar, milk, etc. for seasoning after the program is completed; otherwise, it is easy to burn the bottom.

(3) Keep Warm

Put the ingredients (must be in liquid form) into the cup, select the "Keep Warm" function and press the "START/CANCEL" button, the product will enter the keep warm mode. The screen shows "bb", the preservation temperature is 55-60℃, and the duration is 4 hours. After the keep warm mode ends, the display shows "Ed" with a prompt tone and the product enters standby mode.

(4) Self-Cleaning

Add clean water, select the "Self-Cleaning" function and touch the "START/CANCEL" button, the product will start working. The product will heat water to 80-90℃ and in the meantime blending for 10 minutes.

Note: The countdown for functions is shown in minutes and the countdown of keep warm and presetting is in hours.



• Smart Function

1. Intelligent Altitude Recognition

This product has an intelligent altitude recognition function. When using it for the first time or moving to a new place, please adjust the boiling point through altitude recognition according to the following steps.

(1) Add clean water to the 800ml water level marker inside the cup and don’t add ingredients.

Note: The water must be added to the 800ml marker; otherwise, the boiling point may be inaccurate.

(2) Plug in the product. Long press the "START/CANCEL" button for about 5 seconds, the display will show "hh", and the product will automatically start boiling water and recognizing the local altitude.

Note: Do not cut off the power or turn off the product during heating. The product will automatically enter standby mode after the intelligent altitude recognition is completed.

(3) When moving to a new place, please repeat the above steps.

2. Pasteurization

When the Quick Soymilk or Thick Soymilk function is preset for more than 5 hours, the product will automatically activate the pasteurization function. Shortly before the presetting time, the product will first heat the liquid in the cup to 90°C, then maintain it at 85°C for 15 minutes. After that, it will start the selected function, heating and blending according to the preset schedule.

3. Memory Function

The product will stop operating when the lid is opened during use. If the lid is closed within 5 minutes, it will automatically resume the previously set program.



• Product Operation Instructions

1. When using the product for the first time or moving to a new place, please perform altitude recognition to adjust the boiling point (see instructions of intelligent altitude recognition).

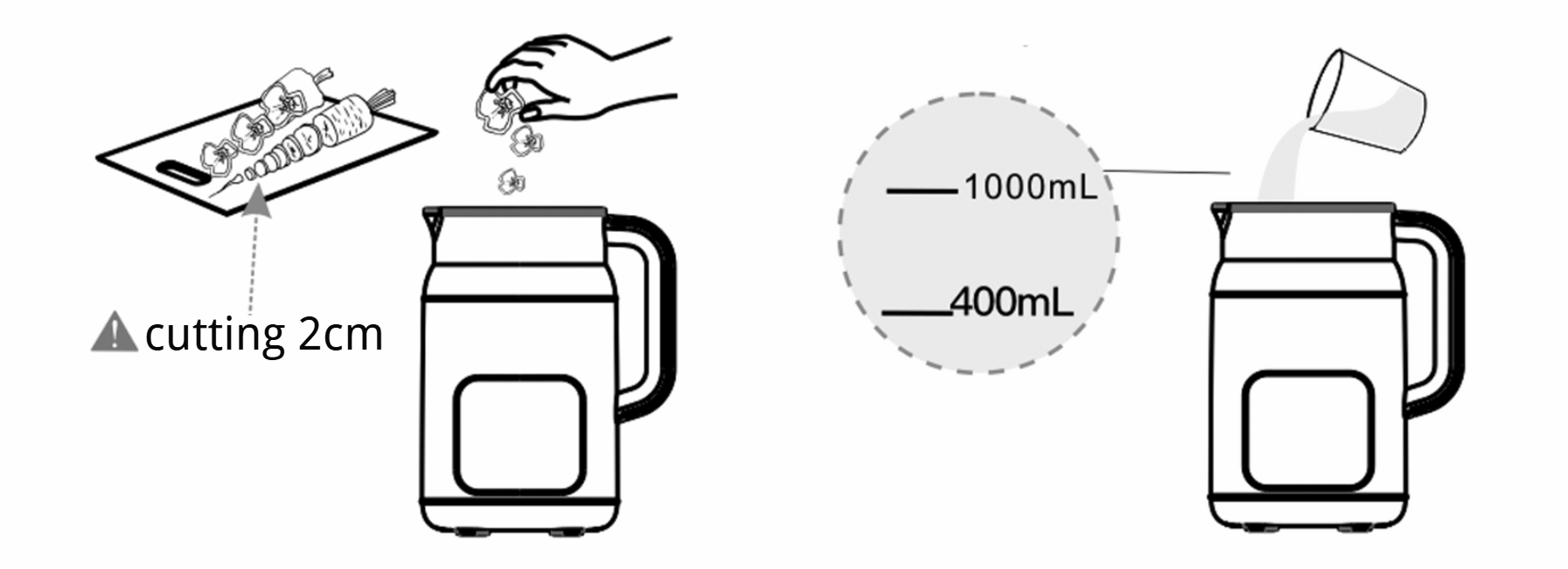

2. Prepare an appropriate amount of ingredients and cut them into pieces, then put them into the cup.
3. Add an appropriate amount of water.

Note: When using functions with a blending option, the amount of water added should be between the 400mL and 800mL water level markers. For the water boiling function, do not exceed 1000mL.

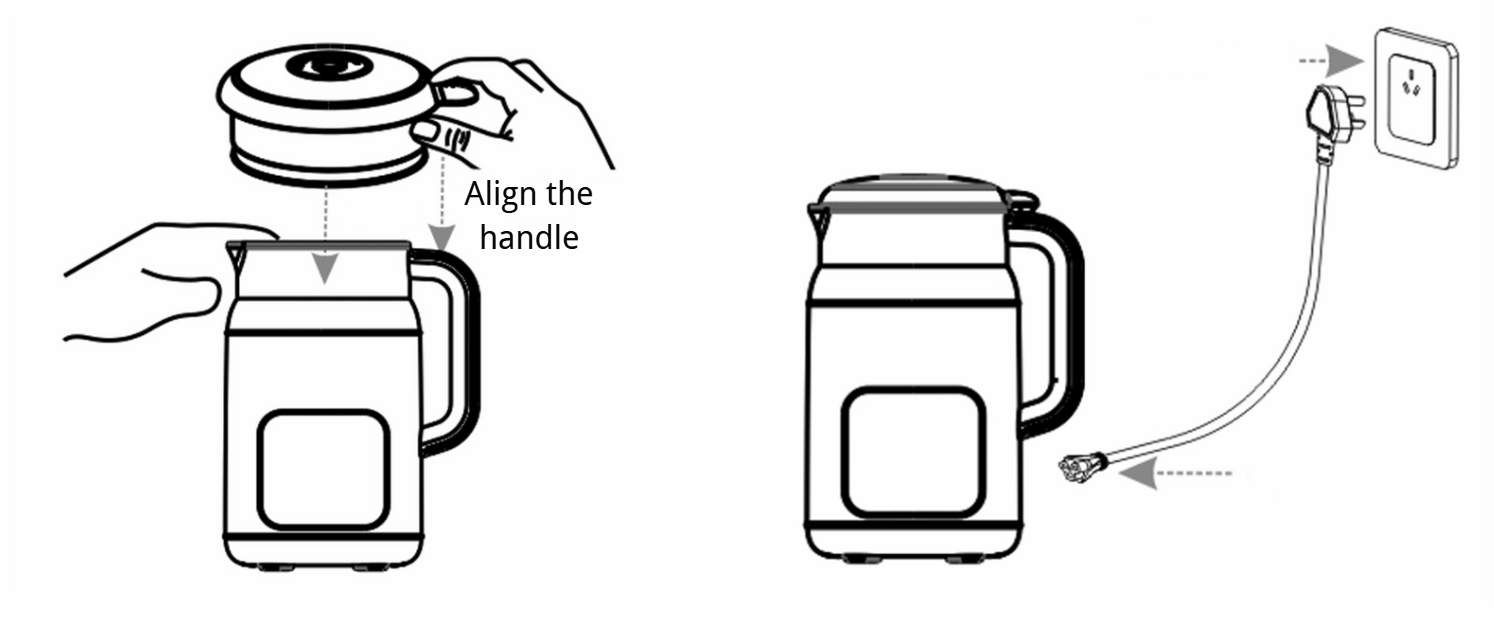

4. Close the lid in the direction indicated.
5. Plug in the product.

Press the "START/CANCEL" button to enter the standby mode.

6. Press the "START/CANCEL" button to enter the standby mode.
7. Press the "MENU" button to select the required function, then press the "START/CANCEL" button to start operation.

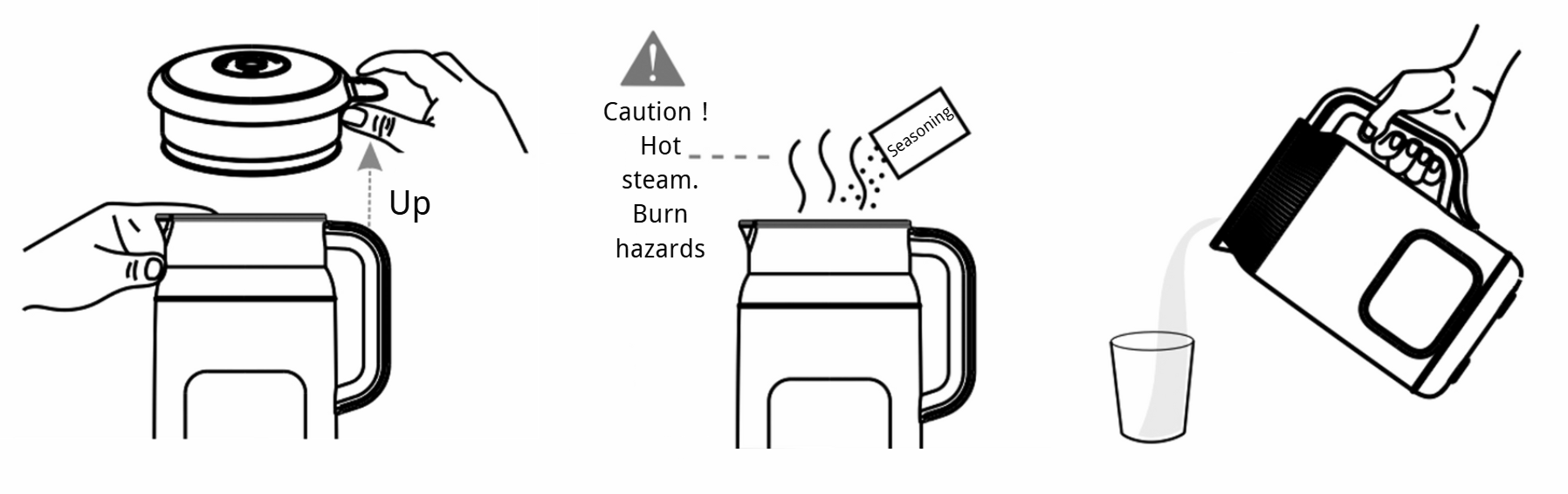

8. Open the lid after the work is completed.
9. Add seasonings.
10. Cut off the power, open the lid, and pour out the food.

11. After use, close the lid, add some water and select the "Self-Cleaning" function, the product will perform cleaning.
12. After making soymilk or other foods twice consecutively, allow the product to cool down for 30 minutes before using it again.

• Cooking Instructions

1. When boiling beans or ingredients that are not easy to roll, it is easy to burn on the bottom. Please note the following precautions:

(1) Add ingredients according to the recommended proportions, and select the corresponding function program.

(2) When making hot drinks, do not add sugar or sugar-containing powdery ingredients first. Add sugar and other seasonings after operation is completed, then select the "Juice" function to blend; otherwise, it is easy to burn the bottom.

2. Tips to Prevent Burning on the Bottom

(1) Select a function with heating program such as "Quick Soymilk" without adding any water or ingredients;

(2) Run the function for 10 seconds to dry the possible residual water in the stainless-steel cup, and terminate the program;

(3) Dip a little vegetable oil with a small brush and brush a thin layer of oil on the bottom of the stainless-steel cup;

(4) When adding ingredients, first add those that are less likely to stick to the bottom of the cup (such as soybeans and black beans), followed by those that are more likely to stick (such as purple sweet potatoes and pumpkins).

3. Cut fruits, vegetables and other ingredients into pieces no larger than 5cm.
4. Do not add fruit of more than 140 grams when making cold drink.
5. Ingredient Proportion



IV. Clean and Maintenance

1. Clean the product in time after use.
2. Before cleaning the product, ensure that the power supply of the product is disconnected and the product is completely cooled.
3. To clean the outer shell of the main unit, wipe it with a damp cloth dipped in neutral detergent, then dry it with a clean cloth.
4. The lid can be directly rinsed with water, but it cannot be soaked in water for a long time.
5. Clean the cup and lid with a sponge, cleaning brush, or cloth. Then wipe them dry with a clean cloth and leave in a cool, well-ventilated place to air dry.

6. Do not immerse the main unit directly in water.
7. If residues at the bottom of the cup are difficult to clean, soak with warm water first. Then scrub in one direction using a cleaning brush, and rinse thoroughly with clean water.
8. Do not use steel wool or sharp objects to clean the inner surface of the cup.



9. The "Self-Cleaning" function can be used to clean the cup. Add an appropriate amount of water to the cup, select the "Self-Cleaning" function, and touch the "START/CANCEL" button.



V. Operating Precautions

1. Never operate without water in the cup to prevent dry burning, which may reduce the product’s service life.
2. Before use, ensure that the plug and power cord are in good condition to avoid electric shock hazard.
3. Ensure that the power supply is properly grounded and that the local voltage matches the voltage specified on the product.
4. Keep the power cord away from heat sources to prevent damage or risk of fire.
5. If the power cord is damaged, it must be replaced with a special cord that is identical to the original or a replacement purchased from its manufacturer or maintenance department.
6. If the product's power cord or plug is damaged, or the product has been dropped on the ground, do not continue using the product.
7. Do not disassemble or modify the product yourself. Disassembly and repair must not be performed by non-professionals, to avoid unpredictable malfunctions caused by improper assembly, which may result in fire, electric shock, or personal injury.
8. Do not use accessories (such as the lid) not provided by our company for the product to avoid danger.
9. Before cleaning the product, ensure that the power supply is disconnected and the product is completely cooled.
10. Do not immerse the product in water or other liquids, and do not touch the machine with wet hands to prevent electric shock.
11. When the product is heating, do not touch the cup and lid to prevent scalding; the handle and control panel, which remain at lower temperatures, are safe to touch.
12. Do not move the product during operation to avoid overflow of ingredients, scalding or electric shock.
13. After the operation is complete, wait for the motor and blades to stop rotating and ensure that the power is disconnected before opening the lid to pour out the food.
14. The lid may be stained after making certain fruit or vegetable drinks for a period of time; this is normal.
15. The grinding blades are sharp. Do not touch the blades with your bare hands when adding food or cleaning the cup.
16. During operation, add no more than 800 mL and no less than 400 mL of water (up to 1000 mL when boiling water). Adding too much or too little water may result in scorching, undercooking, or overflow.
17. Do not add seasonings (sugar, brown sugar, etc.) to the cup during operation to avoid burning on the bottom.
18. Select the corresponding function according to the user manual and add ingredients in proportion.
19. After making soymilk or other foods twice consecutively, allow the product to cool down for 30 minutes before using it again.
20. The product is equipped with a high-speed motor and an intelligent speed control circuit. Intermittent variations in speed during blending are normal.
21. The product cup is equipped with a lid safety lock. Do not open the lid while the product is operating, as this will cause the product to stop working.
22. Before connecting the power supply, ensure that the lid is properly installed.
23. During operation, never insert any object to touch moving parts such as blades and motors to avoid injury or damage to the product.
24. Do not rinse the product directly under water to avoid water entering the machine and causing unpredictable faults and accidents.
25. Do not place the product into a refrigerator or freezer, as rapid cooling or low temperatures may cause internal condensation, which could damage electrical components and result in malfunction.
26. This product is for household use only. Do not use this product outdoors.
27. When discarding the product, it is recommended to cut the power cord; it is also recommended to take the same measures for any parts that may be dangerous, especially to children.
28. Operate the product on a horizontal table. Do not operate on carpets, towels and other fabrics, and keep it away from the edge of the table to prevent falling.
29. Do not place the product on a high-temperature surface, or use it near gas stoves, cooktops, or other high-heat environments.
30. Do not use the product near flammable and explosive materials, such as curtains, window screens or gasoline.
31. Properly place the product. Do not place it on an unstable surface. Keep a proper distance from walls or other objects to ensure adequate ventilation around the product and help extend its service life.
32. Keep the product out of reach of children.
33. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
34. Children should be supervised not to play with the appliance.



 VI. Common Malfunctions and Troubleshooting
