SIMPLUS PORTABLE BLENDER ZZJH014 USER MANUAL

Ⅰ. SPECIFICATIONS

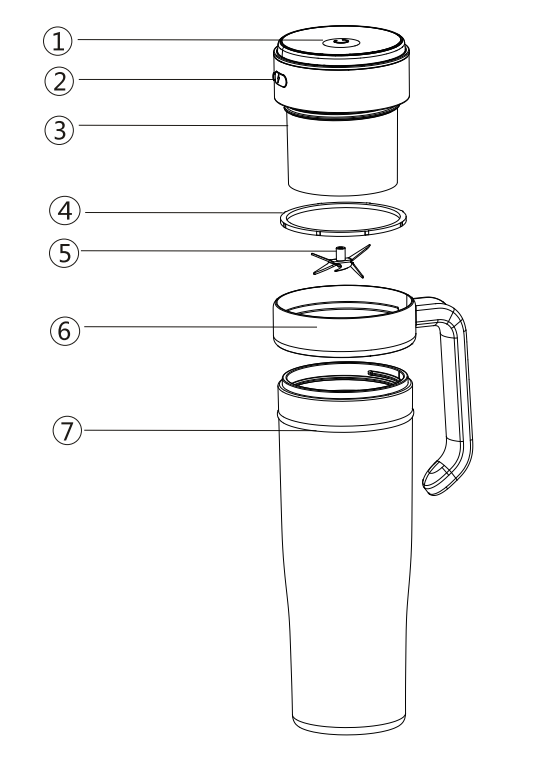

Ⅱ.PRODUCT ILLUSTRATION

①Button

②Charging port silicone

③Main unit

④Main unit sealing ring

⑤Mixing blade

⑥Handle

⑦Stainless steel cup

Ⅲ.Operation Instructions

1. Re-read the preceding precautions.
2. Wash the fruits and cut them into small pieces of about 1.5*1.5cm (Note: For fruits with cores, hard textures, thick peels, or hard shells, remove these parts first).
3. Place the fruits in the cup, ideally filling about 60% of the maximum scale. Then add water to the maximum scale, and screw the main unit onto the cup. When the blue light flashes once, it indicates the main unit is properly secured.Note: Do not exceed the maximum scale line with fruits and water to prevent spillage.
4. Double-click to start the product, then invert it (as shown in Figure 4). The default working time is 40 seconds. Gently shake the product during operation for better mixing. In standby mode, single-click the button to check the battery level.
5. After juicing, the product will automatically enter standby mode. Open the upper lid to drink directly or insert a straw.
6. When the product fails to start and the red light flashes, insert the USB cable into the charging port (compatible with 5V power sources). The blue light stays on when fully charged.
7. This product can be charged with a power bank, taking about 4 hours for a full charge (sufficient for approximately 8 cups of fresh juice). Thank you for using our product.

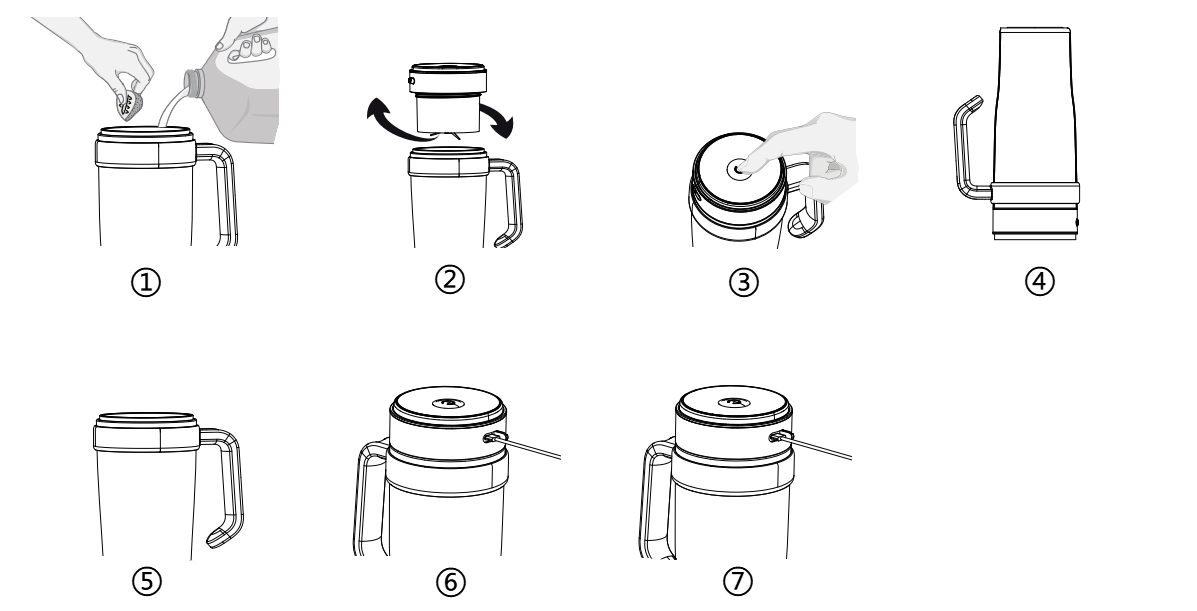

1. Add ingredients
2. Attach the main unit
3. Double-click to start
4. Invert and stir
5. Open the bottle cap and drink directly
6. Red light flashes, please charge
7. Blue light flashes, fully charged

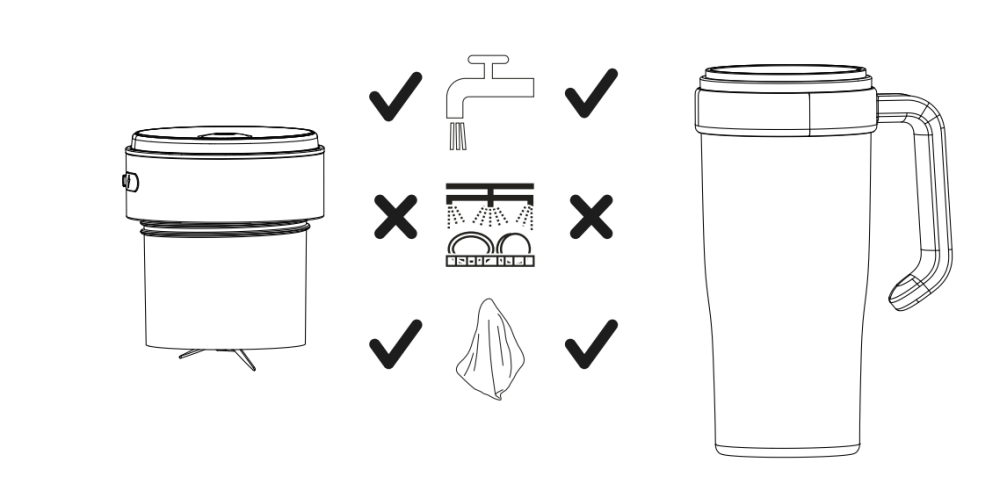

Ⅳ. Cleaning and Maintenance

Ⅴ. Precautions

1. Before use, thoroughly clean and dry all parts in contact with food.
2. Unscrew the cup lid only after the product is turned off and the mixing blade has completely stopped rotating.
3. When cleaning, ensure the power switch is off and the charging port silicone plug is tightly sealed before washing the cup and main unit. Do not immerse the main unit in water to prevent damage to electronic components.
4. Do not use continuously for more than 5 times to avoid overheating from component overload, which may affect product life.
5. The product has overload protection: if the blade jams due to oversized ingredients, it will stop and the red indicator will stay on for 5 seconds. Restart after removing the stuck ingredients.
6. Accessories cannot be disinfected with water over 60°C or a microwave to prevent heat deformation.
7. Do not place the main unit in a dishwasher or cleaning equipment; keep water away from the interior.
8. Avoid using steel wool, abrasive cleaners, or corrosive liquids for cleaning.
9. This dedicated juicer is not suitable for mincing meat, grinding nuts, or soy products.
10. Do not let children use the blender unattended. Always disconnect power before assembly, disassembly, or cleaning.
11. Exercise caution when removing the mixing blade or cleaning the main unit and cup.
12. Turn off and disconnect power before replacing accessories or touching moving parts.
13. The built-in lithium battery should not be exposed to high temperatures or disposed of as general waste. Charge every 3 months if unused for long periods to prevent battery damage.
14. Before discarding, remove the battery by prying open the casing, then place it in a dedicated battery waste bin for professional disposal.
15. Ensure the appliance is powered off when removing the battery.
16. Dispose of batteries safely.
17. For household use only. Misuse, professional use, or operation against manual instructions will void the warranty, and the company disclaims liability for any damages.
18. Not suitable for individuals with physical, cognitive, or mental impairments, or children, unless under supervision.
19. Keep the product away from children as a toy.
20. Do not add fizzy drinks to prevent leakage from the device and ensure normal operation.

Ⅵ.Common Problems

Note: The above are common fault types. If the problem persists or other issues arise, please contact our after-sales service center for further assistance.
